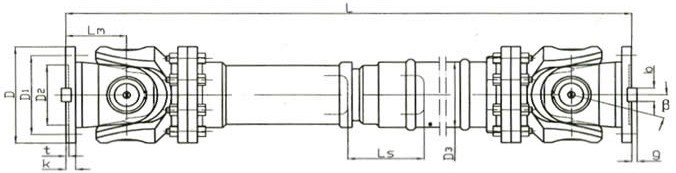

A型十字軸式萬向聯軸器基本參數和主要尺寸
|
型號
|
回轉直徑
D |
公稱轉矩
Tn /N.m |
疲勞轉矩
Tf kN.m |
軸線折角
β |
伸縮量
|
尺 寸
|
轉動慣量I kg·m2
|
質量 G kg
|
||||
|
S
|
Lmin
|
D3
|
L1
|
Lmin
|
每增長 100 mm
|
Lmin
|
每增長 100 mm
|
|||||
|
SWP160A
|
160
|
16
|
8
|
≤25
|
50
|
660
|
114
|
85
|
0.13
|
0.0059
|
47
|
2.1
|
|
SWP180A
|
180
|
20
|
10
|
≤15
|
60
|
752
|
121
|
95
|
0.22
|
0.0072
|
60
|
2.3
|
|
SWP200A
|
200
|
31.5
|
16
|
≤15
|
70
|
823
|
127
|
110
|
0.37
|
0.0114
|
81
|
3.4
|
|
SWP22
|
225
|
40
|
20
|
≤15
|
76
|
933
|
152
|
130
|
0.63
|
0.0290
|
109
|
6.6
|
|
SWP250A
|
250
|
63
|
31.5
|
≤15
|
80
|
978
|
168
|
135
|
1.02
|
0.0407
|
147
|
7.3
|
|
SWP28
|
285
|
90
|
45
|
≤15
|
100
|
1133
|
194
|
150
|
2.17
|
0.0702
|
241
|
9.4
|
|
SWP31
|
315
|
140
|
63
|
≤15
|
110
|
1250
|
219
|
170
|
3.86
|
0.1144
|
322
|
12.0
|
|
SWP350A
|
350
|
180
|
90
|
≤15
|
120
|
1380
|
245
|
185
|
6.66
|
0.1663
|
428
|
13.6
|
|
SWP390A
|
390
|
250
|
112
|
≤15
|
120
|
1495
|
273
|
205
|
11.53
|
0.2695
|
566
|
18.0
|
|
SWP43
|
435
|
355
|
160
|
≤15
|
150
|
1710
|
299
|
235
|
21.81
|
0.3645
|
932
|
20.0
|
|
SWP480A
|
480
|
450
|
224
|
≤15
|
170
|
1910
|
351
|
265
|
38.04
|
0.7028
|
1294
|
28.0
|
|
SWP550A
|
550
|
710
|
315
|
≤15
|
190
|
2135
|
402
|
290
|
61.28
|
1.1842
|
1744
|
35.7
|
|
SWP600A
|
600
|
1000
|
500
|
≤15
|
210
|
2580
|
450
|
360
|
98.63
|
1.7159
|
2330
|
40.5
|
|
SWP640A
|
640
|
1250
|
630
|
≤15
|
230
|
2685
|
480
|
385
|
167.67
|
2.3.8.
|
3153
|
48.3
|
